| Datasheets | 74HC(T)373 |
|---|---|
| Product Training Modules | Logic Packages |
| Category | Integrated Circuits (ICs) |
| Family | Logic - Latches |
| Series | 74HC |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:8 |
| Output Type | Tri-State |
| Voltage - Supply | 2 V ~ 6 V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 12ns |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-DIP |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

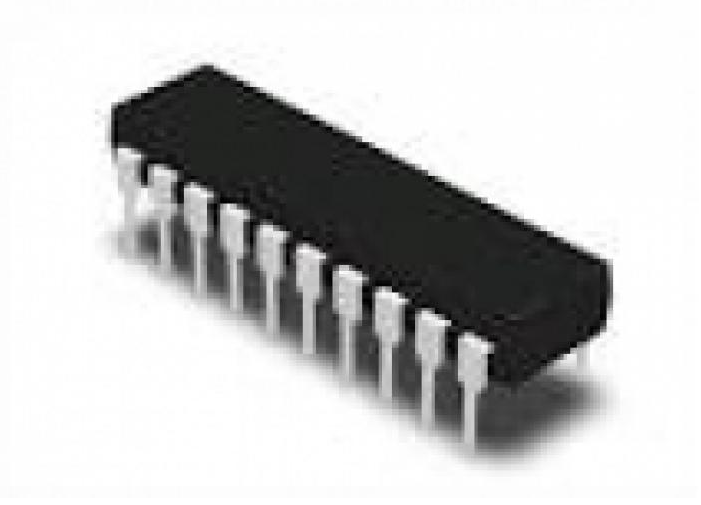

74HC373-DIP20
- Thương hiệu: Texas Instruments
- Loại: Logic
- Mã sản phẩm: C-H6-C4
Giá bán: 6,000₫
Datasheets74HC(T)373Product Training ModulesLogic PackagesCategoryIntegrated Circuits (ICs)FamilyLogic - LatchesSeries74HCLogic TypeD-Type Transparent LatchCircuit8:8Output TypeTri-StateVoltage - Supply2 V ~ 6 VIndependent Circuits1Delay Time - Propagation12nsCurrent - Output High, Low7.8mA, 7.8mAOperating Temperature-40°C ~ 125°CMounting...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
