| Datasheet: | CD4094BE |
| Product Category: | Counter Shift Registers |
| Counting Sequence: | Serial to Serial/Parallel |
| Number of Circuits: | 2 |
| Number of Bits: | 8 bit |
| Package / Case: | SOIC-16 |
| Logic Family: | 40 |
| Number of Input Lines: | 3 |
| Output Type: | 3-State |
| Propagation Delay Time: | 600 ns, 250 ns, 190 ns |
| Supply Voltage - Max: | 18 V |
| Operating Supply Voltage: | 3 V to 18 V |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

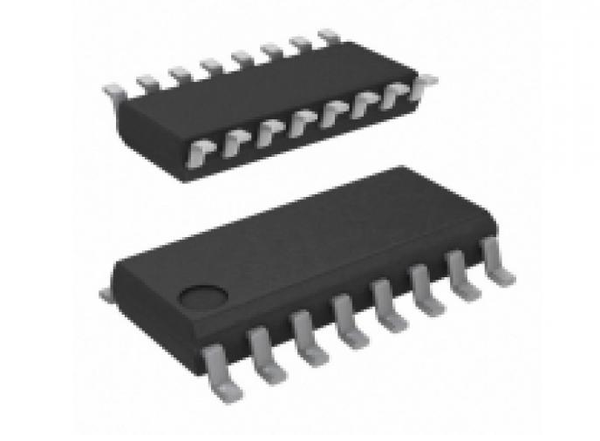

CD4094-SOIC16
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-9-8
Giá bán: 4,500₫
Datasheet:CD4094BEProduct Category:Counter Shift RegistersCounting Sequence:Serial to Serial/ParallelNumber of Circuits:2Number of Bits:8 bitPackage / Case:SOIC-16Logic Family:40Number of Input Lines:3Output Type:3-StatePropagation Delay Time:600 ns, 250 ns, 190 nsSupply Voltage - Max:18 VOperating...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
Chia sẻ
