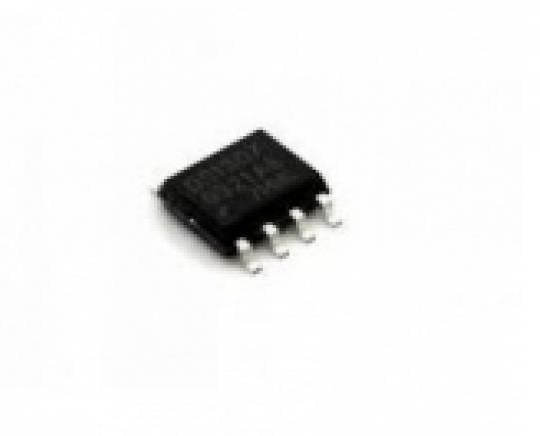

DS1302-SOP8

  • Thương hiệu: Khác
  • Loại: Khác
  • Mã sản phẩm: A-8-11

Giá bán: 3,500₫

DatasheetsDS1302Product Photos8-SOICMfg Application NotesCrystal Considerations with Maxim Real-Time Clocks (RTCs) Using the Dallas Tricklecharge Timekeeper Using the Dallas Tricklecharge Timekeeper Design Considerations for Maxim Real-Time Clocks Lithium Coin-Cell Batteries: Predicting...
  • Giao hàng
    Giao hàng
    Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ
  • Sản phẩm
    Sản phẩm
    Cam kết hàng mới 100%
  • Đổi trả
    Đổi trả
    Chi tiết trong phần bảo hành
  • Hỗ trợ
    Hỗ trợ
    Bán hàng: 0981 276 209
    Kỹ thuật: 0823 893 984

Chia sẻ

DatasheetsDS1302
Product Photos8-SOIC
Mfg Application NotesCrystal Considerations with Maxim Real-Time Clocks (RTCs)
Using the Dallas Tricklecharge Timekeeper
Using the Dallas Tricklecharge Timekeeper
Design Considerations for Maxim Real-Time Clocks
Lithium Coin-Cell Batteries: Predicting an Application Lifetime
Using the DS32kHz with Maxim Real-Time Clocks
Interfacing a DS1302 With an 8051-Type Microcontroller
Estimating Super Capacitor Backup Time on Trickle-Charger Real-Time Clocks
Selecting a Backup Source for Real-Time Clocks
Oscillator Design Considerations for Low-Current Applications
State Machine Logic in Binary-Coded Decimal (BCD)-Formatted Real-Time Clocks
Featured ProductDS1302 Trickle-Charge Timekeeping Chip
Series-
TypeClock/Calendar
FeaturesLeap Year, NVSRAM, Trickle-Charger
Memory Size31B
Time FormatHH:MM:SS (12/24 hr)
Date FormatYY-MM-DD-dd
Interface3-Wire Serial
Voltage - Supply2 V ~ 5.5 V
Voltage - Supply, Battery2 V ~ 5.5 V
Current - Timekeeping (Max)0.3µA ~ 1µA @ 2V ~ 5V
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.209", 5.30mm Width)
Supplier Device Package8-SO
Other NamesDS1302S+T&R-ND
DS1302STR
