Description :

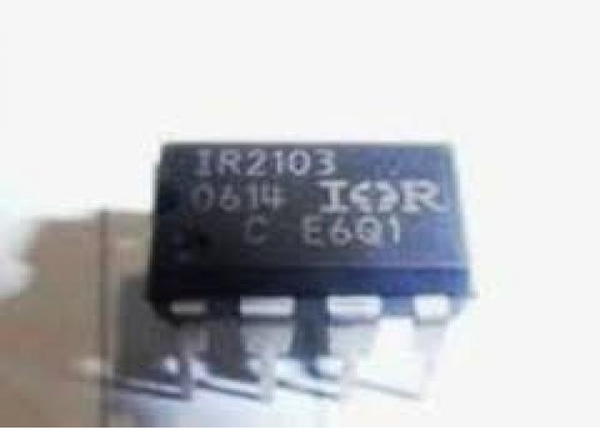

The IR2103(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
DataSheet | IR2103 |
Product Category: | Gate Drivers |
Mounting Style: | Through Hole |
Package / Case: | PDIP-8 |
Product: | Half-Bridge Drivers |
Number of Drivers: | 2 Driver |
Output Current: | 130 mA |
Rise Time: | 170 ns |
Fall Time: | 90 ns |
Supply Voltage : | 10V-20V |
Propagation Delay - Max: | 60 ns |
Maximum Turn-Off Delay Time: | 150 ns |
Maximum Turn-On Delay Time: | 680 ns |
Pd - Power Dissipation: | 1 W |
