| Datasheets | LM139/239/339 |
|---|---|
| Product Photos | 14-DIP |
| Standard Package | 25 |
| Family | Linear - Comparators |
| Packaging | Tube |
| Type | General Purpose |
| Number of Elements | 4 |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| Voltage - Supply, Single/Dual (±) | 2 V ~ 32 V, ±1 V ~ 16 V |
| Voltage - Input Offset (Max) | 5mV @ 30V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| Current - Quiescent (Max) | 2.5mA |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Other Names | 497-1589-5 |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

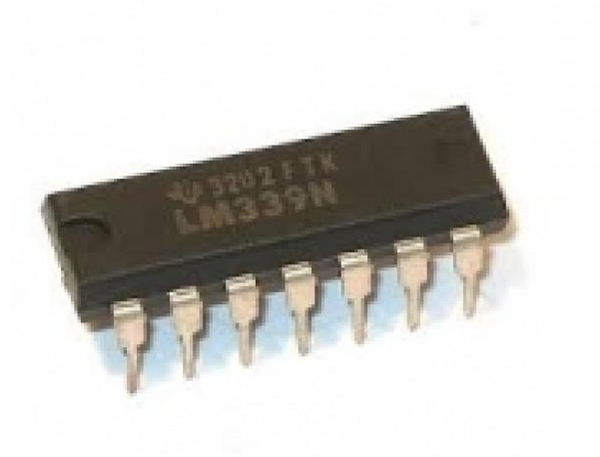

LM339-DIP14
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-10-6
Giá bán: 3,500₫
DatasheetsLM139/239/339Product Photos14-DIPStandard Package 25FamilyLinear - ComparatorsPackaging Tube TypeGeneral PurposeNumber of Elements4Output TypeCMOS, DTL, ECL, MOS, Open-Collector, TTLVoltage - Supply, Single/Dual (±)2 V ~ 32 V, ±1 V ~ 16 VVoltage - Input Offset...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
