atasheets | |
Standard Package | 25 |
Category | Integrated Circuits (ICs) |
Family | Logic - Buffers, Drivers, Receivers, Transceivers |
Series | 74LS |
Packaging | Tube |
Logic Type | Buffer/Line Driver, Non-Inverting with Open Collector |
Number of Elements | 6 |
Number of Bits per Element | 1 |
Current - Output High, Low | -, 40mA |
Voltage - Supply | 4.75 V ~ 5.25 V |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Through Hole |

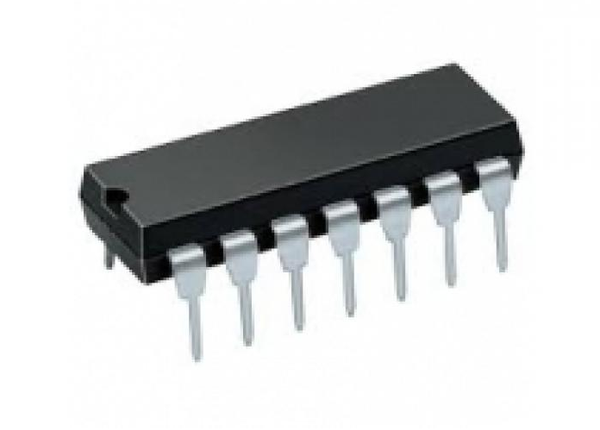

Package / Case | 14-DIP (0.300", 7.62mm) |
Supplier Device Package | 14-PDIP |
Online Catalog | 74LS |
Other Names | 296-14878-5 |
