| Datasheets | SN65176B, SN75176B |
|---|---|
| Family | Interface - Drivers, Receivers, Transceivers |
| Series | - |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 50mV |
| Data Rate | - |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other Names | 296-1739 296-1739-5 |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

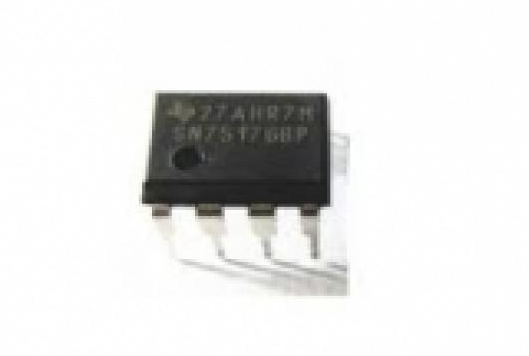

SN75176-DIP8
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-9-13
Giá bán: 5,000₫
DatasheetsSN65176B, SN75176BFamilyInterface - Drivers, Receivers, TransceiversSeries-TypeTransceiverProtocolRS422, RS485Number of Drivers/Receivers1/1DuplexHalfReceiver Hysteresis50mVData Rate-Voltage - Supply4.75 V ~ 5.25 VOperating Temperature0°C ~ 70°CMounting TypeThrough HolePackage / Case8-DIP (0.300", 7.62mm)Supplier Device Package8-PDIPOther Names296-1739 296-1739-5
-
