Datasheets | FR106,107 |
---|---|

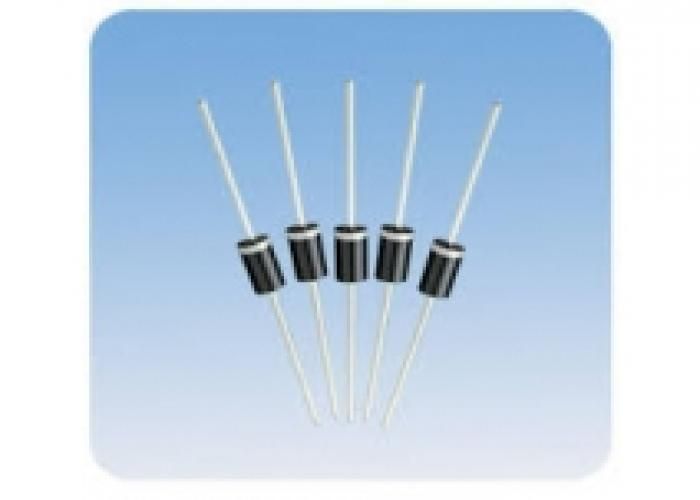

Product Photos | 261-DO-41 |
Series | - |
Packaging | Tape & Reel (TR) |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) |
Current - Average Rectified (Io) | 1A |
Voltage - Forward (Vf) (Max) @ If | 1.3V @ 1A |
Speed | Fast Recovery =< 500ns, > 200mA (Io) |
Reverse Recovery Time (trr) | 500ns |
Current - Reverse Leakage @ Vr | 5µA @ 1000V |
Capacitance @ Vr, F | - |
Mounting Type | Through Hole |
Package / Case | DO-204AL, DO-41, Axial |
Supplier Device Package | DO-41 |
Operating Temperature - Junction | -65°C ~ 175°C |
Other Names | FR107 FR107-T-F FR107-T-FDITR FR107-T-FDITR-ND FR107DITR FR107TR FR107TR-ND |
