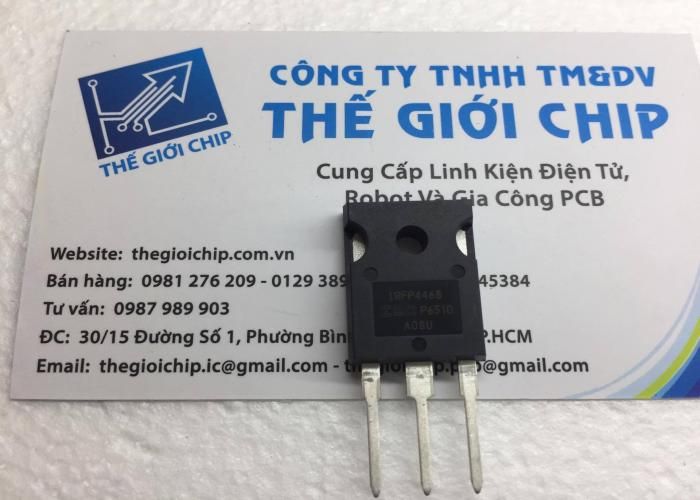

Datasheets | IRFP4468PBF |
---|---|
FET Type | MOSFET N-Channel, Metal Oxide |
FET Feature | Standard |
Drain to Source Voltage (Vdss) | 100V |
Current - Continuous Drain (Id) @ 25°C | 290A |
Rds On (Max) @ Id, Vgs | 2.6 mOhm @ 180A, 10V |
Vgs(th) (Max) @ Id | 4V @ 250µA |
Gate Charge (Qg) @ Vgs | 540nC @ 10V |
Input Capacitance (Ciss) @ Vds | 19860pF @ 50V |
Power - Max | 520W |
Mounting Type | Through Hole |
Package / Case | TO-247-3 |
Supplier Device Package | TO-247AC |
