Datasheets | IRL2203NPbF |
---|---|
FET Type | MOSFET N-Channel, Metal Oxide |
FET Feature | Standard |
Drain to Source Voltage (Vdss) | 30V |
Current - Continuous Drain (Id) @ 25°C | 116A (Tc) |
Rds On (Max) @ Id, Vgs | 7 mOhm @ 60A, 10V |
Vgs(th) (Max) @ Id | 1V @ 250µA |
Gate Charge (Qg) @ Vgs | 60nC @ 4.5V |
Input Capacitance (Ciss) @ Vds | 3290pF @ 25V |
Power - Max | 180W |
Mounting Type | Through Hole |

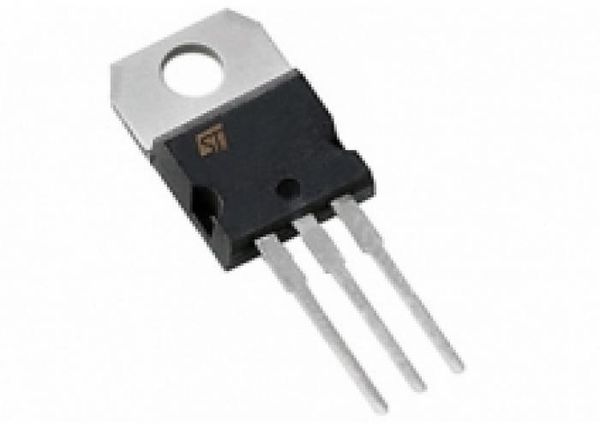

Package / Case | TO-220-3 |
Supplier Device Package | TO-220AB |
