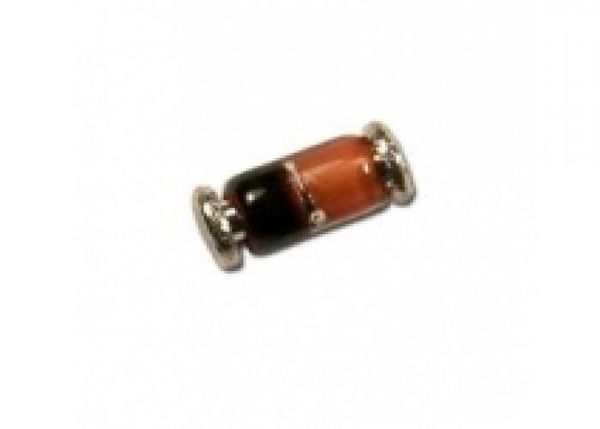

Datasheets | LL4448 |
---|---|
Family | Diodes, Rectifiers - Single |
Packaging | Tape & Reel (TR) |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 100V |
Current - Average Rectified (Io) | 200mA |
Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA |
Speed | Small Signal =< 200mA (Io), Any Speed |
Reverse Recovery Time (trr) | 4ns |
Current - Reverse Leakage @ Vr | 5µA @ 75V |
Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
Mounting Type | Surface Mount |
