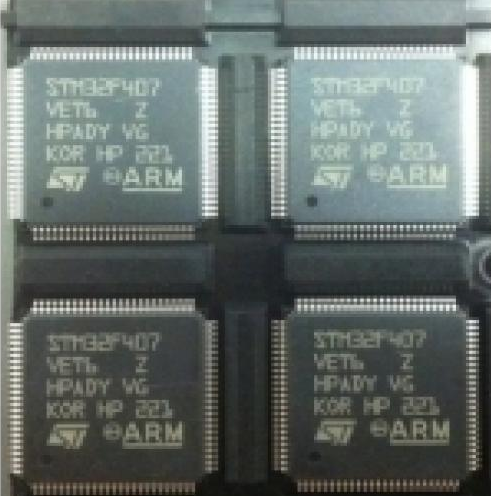

STM32F407VET6-100LQFP

  • Thương hiệu: STMicroelectronics
  • Loại: MCU
  • Mã sản phẩm: C-H8-C13

Giá bán: 230,000₫

Giá thị trường: 240,000₫

Tiết kiệm: 10,000₫ -4%

DatasheetsSTM32F405/407xx  STM32F4 Series BrochureOther Related DocumentsSTM32F407VE View All SpecificationsProduct Training ModulesSmart Grid Solutions: Smart Grid Distribution/Smart MetersHealthcare and WellnessSTM32CubeDesign ResourcesDevelopment Tool SelectorFeatured ProductSTM32 32-bit Cortex MCUsSTM32F407 MicrocontrollersStandard Package 90CategoryIntegrated Circuits (ICs)FamilyEmbedded...
  • Giao hàng
    Giao hàng
    Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ
  • Sản phẩm
    Sản phẩm
    Cam kết hàng mới 100%
  • Đổi trả
    Đổi trả
    Chi tiết trong phần bảo hành
  • Hỗ trợ
    Hỗ trợ
    Bán hàng: 0981 276 209
    Kỹ thuật: 0823 893 984

Chia sẻ

Datasheets

STM32F405/407xx
STM32F4 Series Brochure

Other Related Documents

STM32F407VE View All Specifications

Product Training Modules

Smart Grid Solutions: Smart Grid Distribution/Smart Meters

Healthcare and Wellness

STM32Cube

Design Resources

Development Tool Selector

Featured Product

STM32 32-bit Cortex MCUs

STM32F407 Microcontrollers

Standard Package

90

Category

Integrated Circuits (ICs)

Family

Embedded - Microcontrollers

Series

STM32 F4

Packaging

Tray

Core Processor

ARM® Cortex®-M4

Core Size

32-Bit

Speed

168MHz

Connectivity

CAN, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LIN, SPI, UART/USART, USB OTG

Peripherals

Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT

Number of I/O

82

Program Memory Size

512KB (512K x 8)

Program Memory Type

FLASH

EEPROM Size

-

RAM Size

192K x 8

Voltage - Supply (Vcc/Vdd)

1.8 V ~ 3.6 V

Data Converters

A/D 16x12b, D/A 2x12b

Oscillator Type

Internal

Operating Temperature

-40°C ~ 85°C

Package / Case

100-LQFP

Online Catalog

STM32 F4 Series
