| Datasheets | 74HC(T)165 |
|---|---|
| Product Training Modules | Logic Packages |
| Category | Integrated Circuits (ICs) |
| Family | Logic - Shift Registers |
| Series | 74HC |
| Packaging | Tape & Reel (TR) |
| Logic Type | Shift Register |
| Output Type | Differential |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Parallel or Serial to Serial |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Online Catalog | 74HC |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

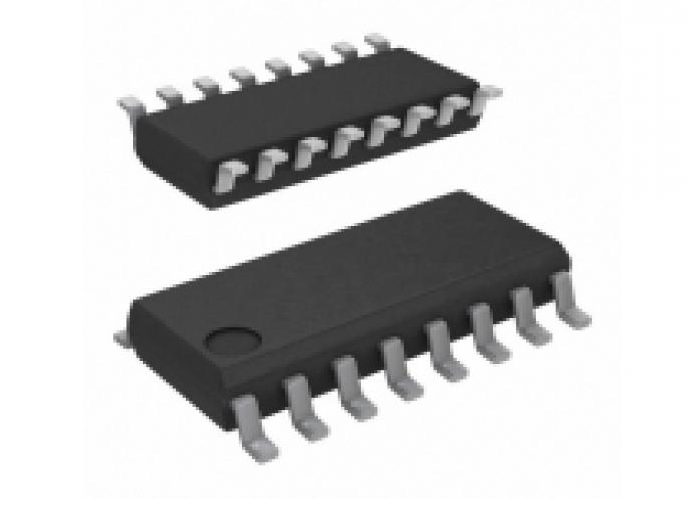

74HC165-SOP16
- Thương hiệu: NXP
- Loại: Logic
- Mã sản phẩm: C-H6-C9
Giá bán: 4,500₫
Datasheets74HC(T)165Product Training ModulesLogic PackagesCategoryIntegrated Circuits (ICs)FamilyLogic - Shift RegistersSeries74HCPackaging Tape & Reel (TR) Logic TypeShift RegisterOutput TypeDifferentialNumber of Elements1Number of Bits per Element8FunctionParallel or Serial to SerialVoltage - Supply2 V ~ 6...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
Chia sẻ
