| Datasheets | CD4017B,22B Types |
|---|---|
| Category | Integrated Circuits (ICs) |
| Family | Logic - Counters, Dividers |
| Series | 4000B |
| Packaging | Tape & Reel (TR) |
| Logic Type | Counter, Decade |
| Direction | Up |
| Number of Elements | 1 |
| Number of Bits per Element | 10 |
| Reset | Asynchronous |
| Timing | Synchronous |
| Count Rate | 5.5MHz |
| Trigger Type | Positive Edge |
| Voltage - Supply | 3 V ~ 18 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC N |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

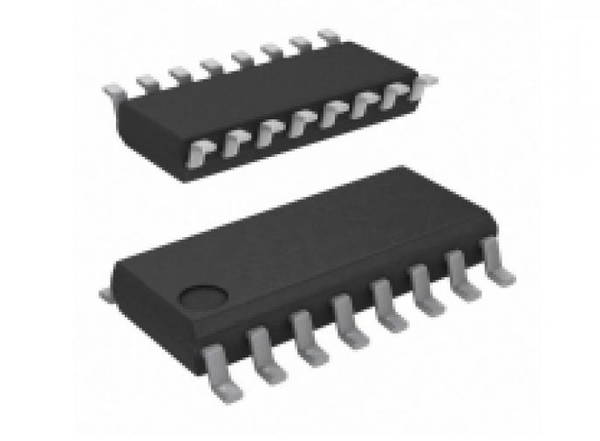

CD4017-SOIC16
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-9-12
Giá bán: 4,500₫
DatasheetsCD4017B,22B TypesCategoryIntegrated Circuits (ICs)FamilyLogic - Counters, DividersSeries4000BPackaging Tape & Reel (TR) Logic TypeCounter, DecadeDirectionUpNumber of Elements1Number of Bits per Element10ResetAsynchronousTimingSynchronousCount Rate5.5MHzTrigger TypePositive EdgeVoltage - Supply3 V ~ 18 VOperating Temperature-55°C ~ 125°CMounting...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
Chia sẻ
