| Datasheets | CD4066B Types |
|---|---|
| Category | Integrated Circuits (ICs) |
| Family | Logic - Signal Switches, Multiplexers, Decoders |
| Series | 4000B |
| Type | Bilateral, FET Switches |
| Circuit | 1 x 1:1 |
| Independent Circuits | 4 |
| Voltage Supply Source | Dual Supply |
| Voltage - Supply | 3 V ~ 18 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Online Catalog | 4000B |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

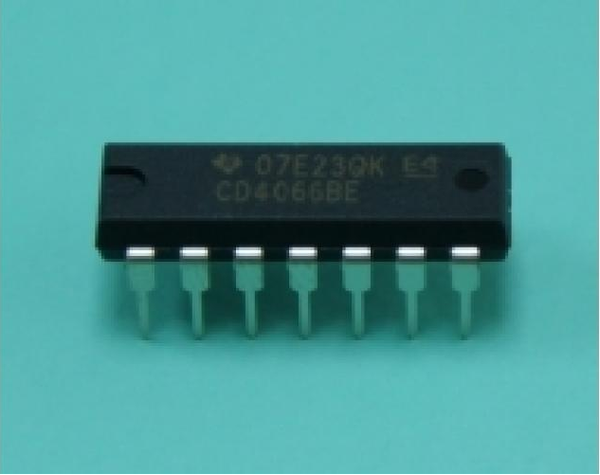

CD4066BE-DIP14
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-9-7
Giá bán: 4,500₫
DatasheetsCD4066B TypesCategoryIntegrated Circuits (ICs)FamilyLogic - Signal Switches, Multiplexers, DecodersSeries4000BTypeBilateral, FET SwitchesCircuit1 x 1:1Independent Circuits4Voltage Supply SourceDual SupplyVoltage - Supply3 V ~ 18 VOperating Temperature-55°C ~ 125°CMounting TypeThrough HolePackage / Case14-DIP...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
Chia sẻ
