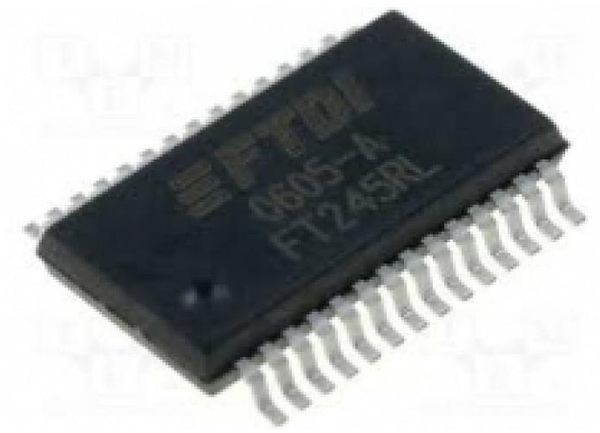

FT245RL - SSOP28

The FT245R is a USB to parallel FIFO interface with the following advanced features:
 Single chip USB to parallel FIFO bidirectional data transfer interface.
 Entire USB protocol handled on the chip. No USB specific firmware programming required.
 Fully integrated 1024 bit EEPROM storing device descriptors and FIFO I/O configuration.
 Fully integrated USB termination resistors.
 Fully integrated clock generation with no external crystal required.
 Data transfer rates up to 1Mbyte / second.
 128 byte receive buffer and 256 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
 FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
 Unique USB FTDIChip-ID™ feature.
 Configurable FIFO interface I/O pins.
 Synchronous and asynchronous bit bang interface options.
