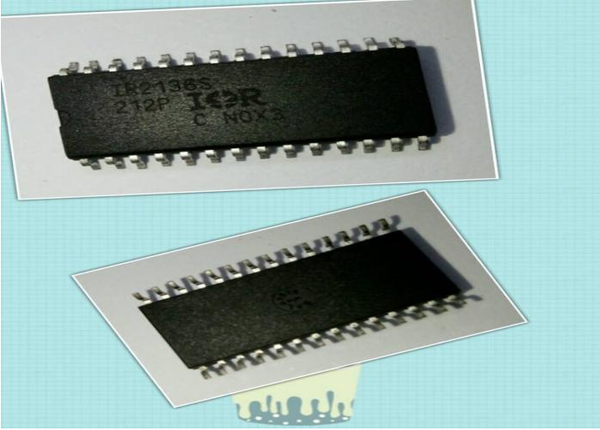

IR2136S-SOP28

  • Thương hiệu: Khác
  • Loại: Khác
  • Mã sản phẩm: A-7-5

Giá bán: 50,000₫

Description:The IR2136x (J&S) are high voltage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables...
  • Giao hàng
    Giao hàng
    Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ
  • Sản phẩm
    Sản phẩm
    Cam kết hàng mới 100%
  • Đổi trả
    Đổi trả
    Chi tiết trong phần bảo hành
  • Hỗ trợ
    Hỗ trợ
    Bán hàng: 0981 276 209
    Kỹ thuật: 0823 893 984

Chia sẻ

Description:

The IR2136x (J&S) are high voltage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3 V logic. A current trip function which terminates all six outputs an be derived from an external current sense resistor. An enable function is available to terminate all six outputs simultaneously. An open-drain FAULT signal is provided to indicate that an overcurrent or undervoltage shutdown has occurred. Overcurrent fault conditions are cleared automatically after a delay programmed externally via an RC network connected to the RCIN input. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600 V.

Datasheet IR2136
Product Category:Gate Drivers
Mounting Style:SMD/SMT
Package / Case:SOIC-28
Number of Drivers:6 Driver
Rise Time:190 ns
Fall Time:75 ns
Supply Voltage:10V-20V
Operating Temperature:-40 C +125 C
Maximum Turn-Off Delay Time:550 ns
Maximum Turn-On Delay Time:550 ns
Operating Supply Current:2.3 mA
Pd - Power Dissipation:1600 mW
