| Datasheets | L298 |
|---|---|
| Other Related Documents | L298 View All Specifications |
| Product Training Modules | Small Motor Drivers |
| Category | Integrated Circuits (ICs) |
| Family | PMIC - Full, Half-Bridge Drivers |
| Output Configuration | Half Bridge (4) |
| Applications | DC Motors, Relays, Solenoids, Stepper Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Bipolar |
| Current - Peak Output | 2A |
| Voltage - Supply | 4.5 V ~ 7 V |
| Voltage - Load | 4.8 V ~ 46 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Fault Protection | Current Limiting, Over Temperature |
| Mounting Type | Through Hole |
| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) |
| Supplier Device Package | 15-Multiwatt |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

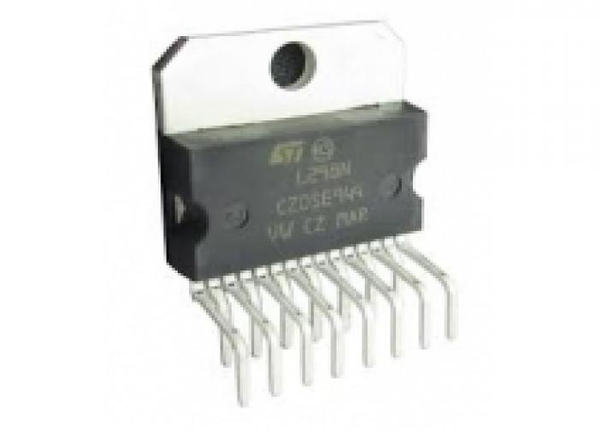

L298N-ZIP15
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-10-7
Giá bán: 27,000₫
Giá thị trường: 52,000₫
Tiết kiệm: 25,000₫ -48%
DatasheetsL298Other Related DocumentsL298 View All SpecificationsProduct Training ModulesSmall Motor DriversCategoryIntegrated Circuits (ICs)FamilyPMIC - Full, Half-Bridge DriversOutput ConfigurationHalf Bridge (4)ApplicationsDC Motors, Relays, Solenoids, Stepper MotorsInterfaceLogicLoad TypeInductiveTechnologyBipolarCurrent - Peak Output2AVoltage - Supply4.5...
-
