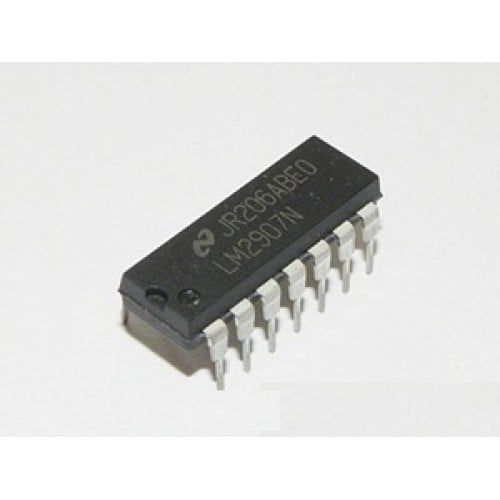

Description:
The LM2907 and LM2917 devices are monolithic frequency-to-voltage converters with a high gain opamp designed to operate a relay, lamp, or other load when the input frequency reaches or exceeds a selected rate. The tachometer uses a charge pump technique and offers frequency doubling for lowripple, full-input protection in two versions (8-pin LM2907 and LM2917), and its output swings to ground for a zero frequency input.
Specifications:
| Datasheet | LM2907-N |
| Manufacturer: | Texas Instruments |
| Product Category: | Voltage to Frequency & Frequency to Voltage |
| Full Scale Frequency: | 10 kHz |
| INL - Integral Nonlinearity: | +/- 1 % FSR |
| Supply Voltage - Max: | 28V |
| Supply Voltage - Min: | 6V |
| Supply Type: | Single |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Mounting Style: | Through Hole |
| Package / Case: | PDIP-14 |
| Height: | 3.3 mm |
| Length: | 19.05 mm |
| Width: | 6.35 mm |
Unit Weight: | 1.620 g |
