| Datasheets | MOC3010-12M, MOC3020-23M |
|---|---|
| Category | Isolators |
| Family | Optoisolators - Triac, SCR Output |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 400V |
| Current - LED Trigger (Ift) (Max) | 30mA |
| Current - Hold (Ih) | 100µA (Typ) |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approvals | UR |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

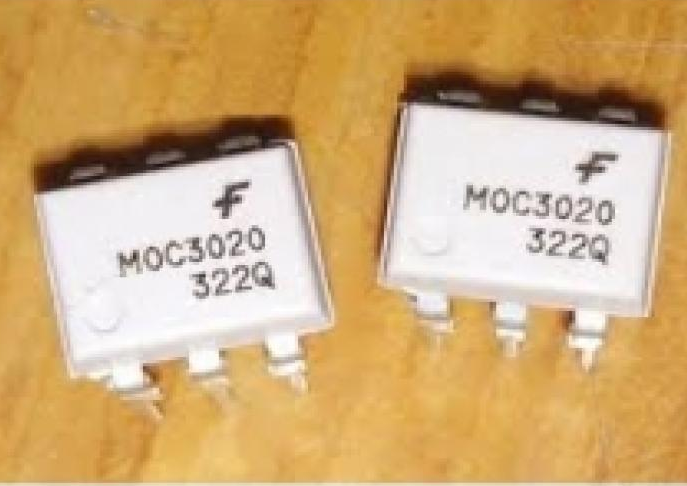

MOC3020M-DIP6
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: Chưa rõ
Giá bán: 6,500₫
DatasheetsMOC3010-12M, MOC3020-23MCategoryIsolatorsFamilyOptoisolators - Triac, SCR OutputOutput TypeTriacZero Crossing CircuitNoNumber of Channels1Voltage - Isolation5300VrmsVoltage - Off State400VCurrent - LED Trigger (Ift) (Max)30mACurrent - Hold (Ih)100µA (Typ)Voltage - Forward (Vf) (Typ)1.15VCurrent -...
-
