| Datasheets | MOC3063 Series |
|---|---|
| Category | Isolators |
| Family | Optoisolators - Triac, SCR Output |
| Packaging | Tube |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600V |
| Static dV/dt (Min) | 600V/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - Hold (Ih) | 400µA (Typ) |
| Turn On Time | 8µs |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approvals | CSA, FIMKO, UR |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

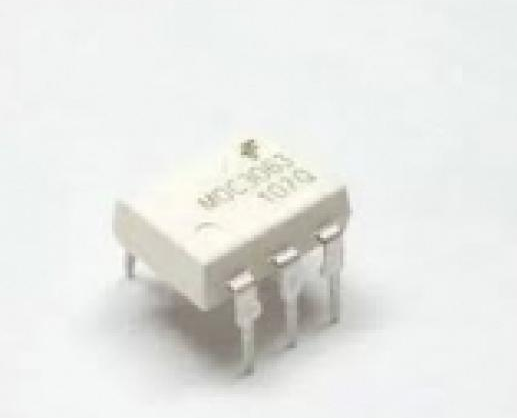

MOC3063-DIP6
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: Chưa rõ
Giá bán: 10,000₫
DatasheetsMOC3063 SeriesCategoryIsolatorsFamilyOptoisolators - Triac, SCR OutputPackaging Tube Output TypeTriacZero Crossing CircuitYesNumber of Channels1Voltage - Isolation5000VrmsVoltage - Off State600VStatic dV/dt (Min)600V/µsCurrent - LED Trigger (Ift) (Max)5mACurrent - Hold (Ih)400µA (Typ)Turn On Time8µsVoltage -...
-
Giao hàng
Miễn phí giao hàng nội thành Tp. HCM với đơn hàng trên 500'000VNĐ -
Sản phẩm
Cam kết hàng mới 100% -
Đổi trả
Chi tiết trong phần bảo hành -
Hỗ trợ
Bán hàng: 0981 276 209
Kỹ thuật: 0823 893 984
