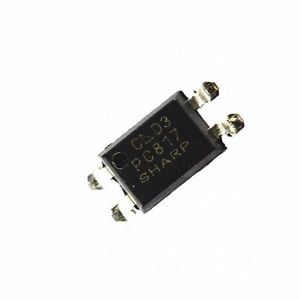

Datasheets | PC817 |
---|---|
Category | Isolators |
Family | Optoisolators - Transistor, Photovoltaic Output |
Packaging | Tape & Reel (TR) |
Number of Channels | 1 |
Voltage - Isolation | 5000Vrms |
Current Transfer Ratio (Min) | 50% @ 5mA |
Current Transfer Ratio (Max) | 600% @ 5mA |
Rise / Fall Time (Typ) | 4µs, 3µs |
Input Type | DC |
Output Type | Transistor |
Voltage - Output (Max) | 80V |
Current - Output / Channel | 50mA |
Voltage - Forward (Vf) (Typ) | 1.2V |
Current - DC Forward (If) (Max) | 50mA |
Vce Saturation (Max) | 200mV |
Operating Temperature | -30°C ~ 100°C |
Mounting Type | Surface Mount |
Package / Case | 4-SMD, Gull Wing |
Supplier Device Package | 4-SMD |
