| Datasheets | SP481E/485E |
|---|---|
| Series | - |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 20mV |
| Data Rate | 10Mbps |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC N |
| Online Catalog | RS-485 Transceivers |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

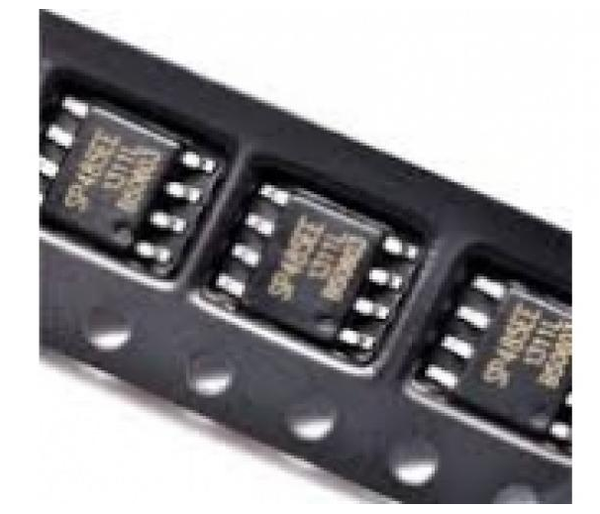

SP485-SOP8
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-H8-C2
Giá bán: 7,000₫
DatasheetsSP481E/485ESeries-TypeTransceiverProtocolRS422, RS485Number of Drivers/Receivers1/1DuplexHalfReceiver Hysteresis20mVData Rate10MbpsVoltage - Supply4.75 V ~ 5.25 VOperating Temperature0°C ~ 70°CMounting TypeSurface MountPackage / Case8-SOIC (0.154", 3.90mm Width)Supplier Device Package8-SOIC NOnline CatalogRS-485 Transceivers
-
