| Datasheets | ULx200xA(I) |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors (BJT) - Arrays |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 7 NPN Darlington |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

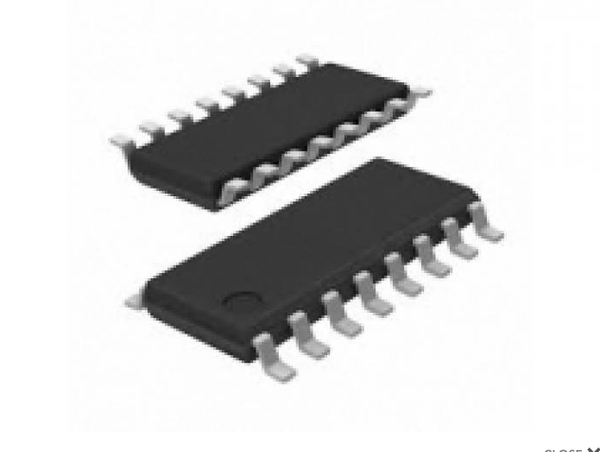

ULN2003-SOIC16
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: A-10-11
Giá bán: 3,500₫
Giá thị trường: 4,000₫
Tiết kiệm: 500₫ -13%
DatasheetsULx200xA(I)CategoryDiscrete Semiconductor ProductsFamilyTransistors (BJT) - ArraysPackaging Tape & Reel (TR) Transistor Type7 NPN DarlingtonCurrent - Collector (Ic) (Max)500mAVoltage - Collector Emitter Breakdown (Max)50VVce Saturation (Max) @ Ib, Ic1.6V @ 500µA, 350mAMounting TypeSurface...
-
