| Datasheets | ULN2803A Datasheet |
|---|---|
| Category | Discrete Semiconductor Products |
| Family | Transistors (BJT) - Arrays |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 8 NPN Darlington |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOP (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOP |
- Liên hệ:
- Bán hàng: 0981 276 209 - Kỹ thuật: 0823 893 984
-
Tin tức:

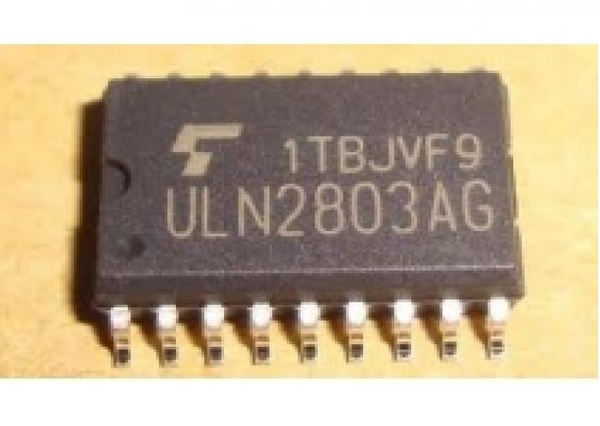

ULN2803-SOP18
- Thương hiệu: Khác
- Loại: Khác
- Mã sản phẩm: C-H3-C12
Giá bán: 5,500₫
DatasheetsULN2803A DatasheetCategoryDiscrete Semiconductor ProductsFamilyTransistors (BJT) - ArraysPackaging Tape & Reel (TR) Transistor Type8 NPN DarlingtonCurrent - Collector (Ic) (Max)500mAVoltage - Collector Emitter Breakdown (Max)50VVce Saturation (Max) @ Ib, Ic1.6V @ 500µA, 350mAMounting...
-
